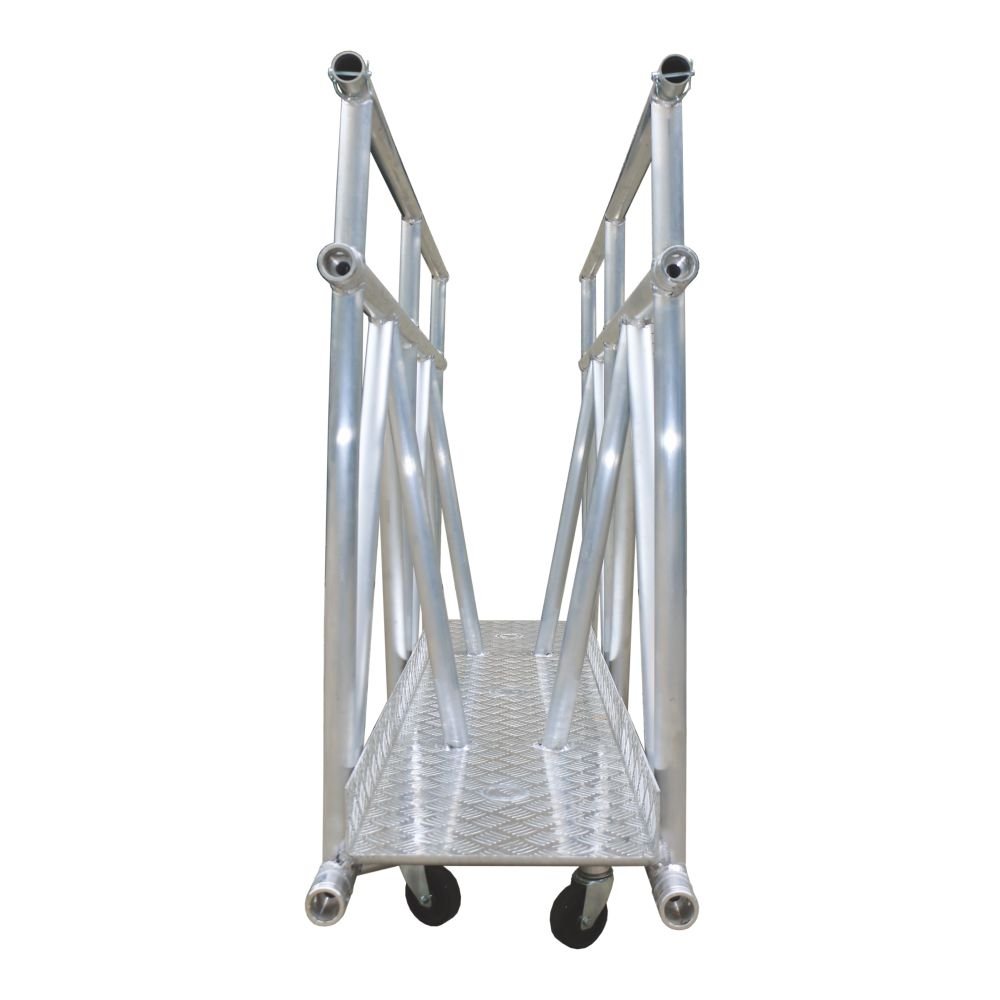

Introduction to the Catwalk 1310 Truss

The Catwalk 1310 Truss, specifically the F100CW-R section type, is designed for versatile applications in construction and events. This truss features a rectangular (R) section size measuring 1310x580mm, providing structural integrity and reliability.

Material and Construction

Constructed from high-quality EN AW 6082-T6 aluminum, the Catwalk 1310 is robust yet lightweight. The primary tubes are Ø60x6mm, while the braces come in sizes of Ø50x3mm and Ø30x3mm. This combination ensures exceptional strength and stability.

Standard Lengths and Coupling Systems

The Catwalk 1310 Truss is available in standard lengths ranging from 0.5m to 5m. It is easy to assemble and connect thanks to its CCS60 coupling system, which includes 4 conical connectors and 8 pins for secure attachment.
