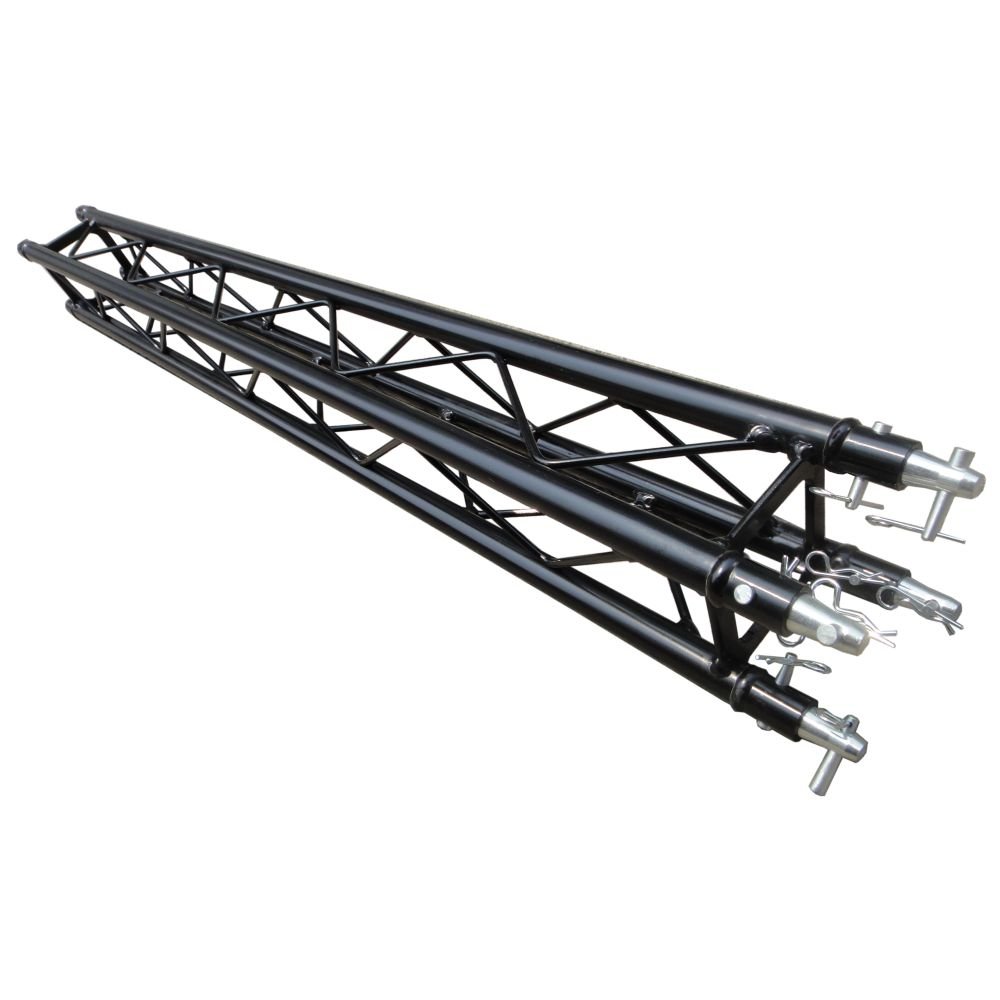

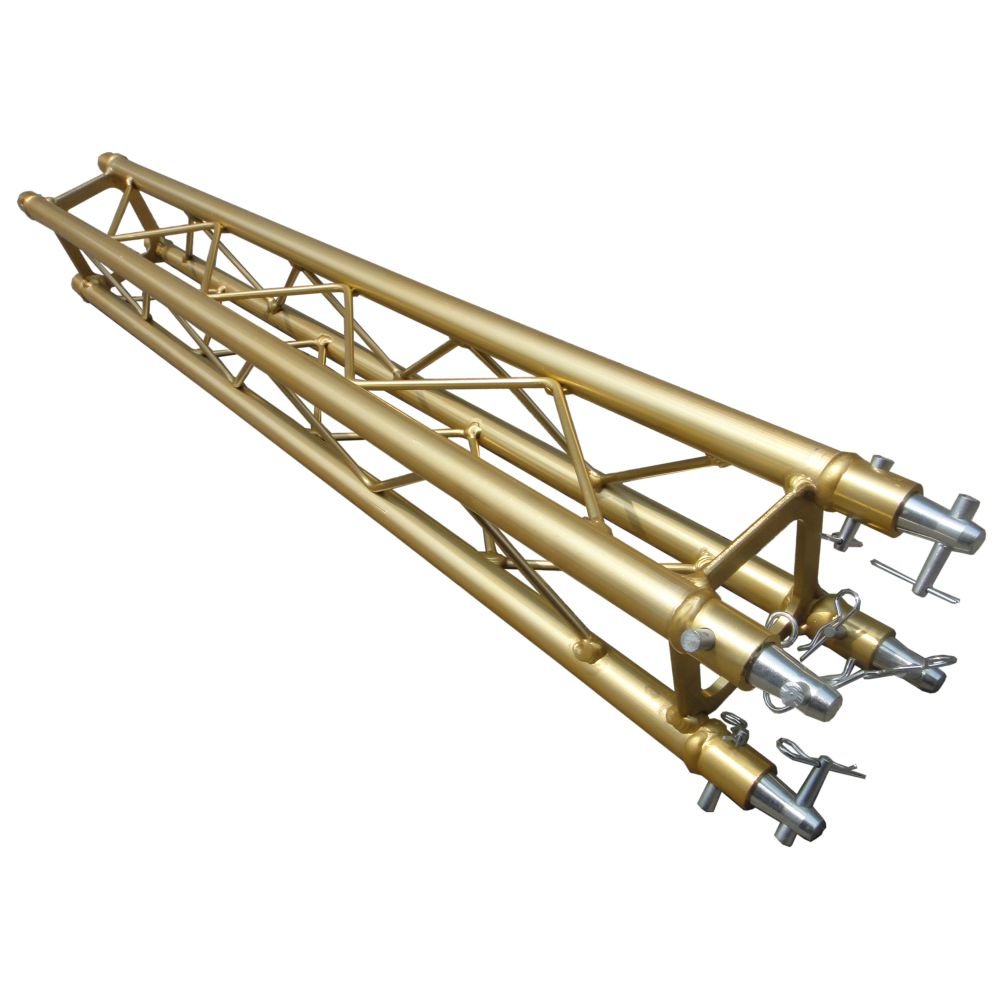

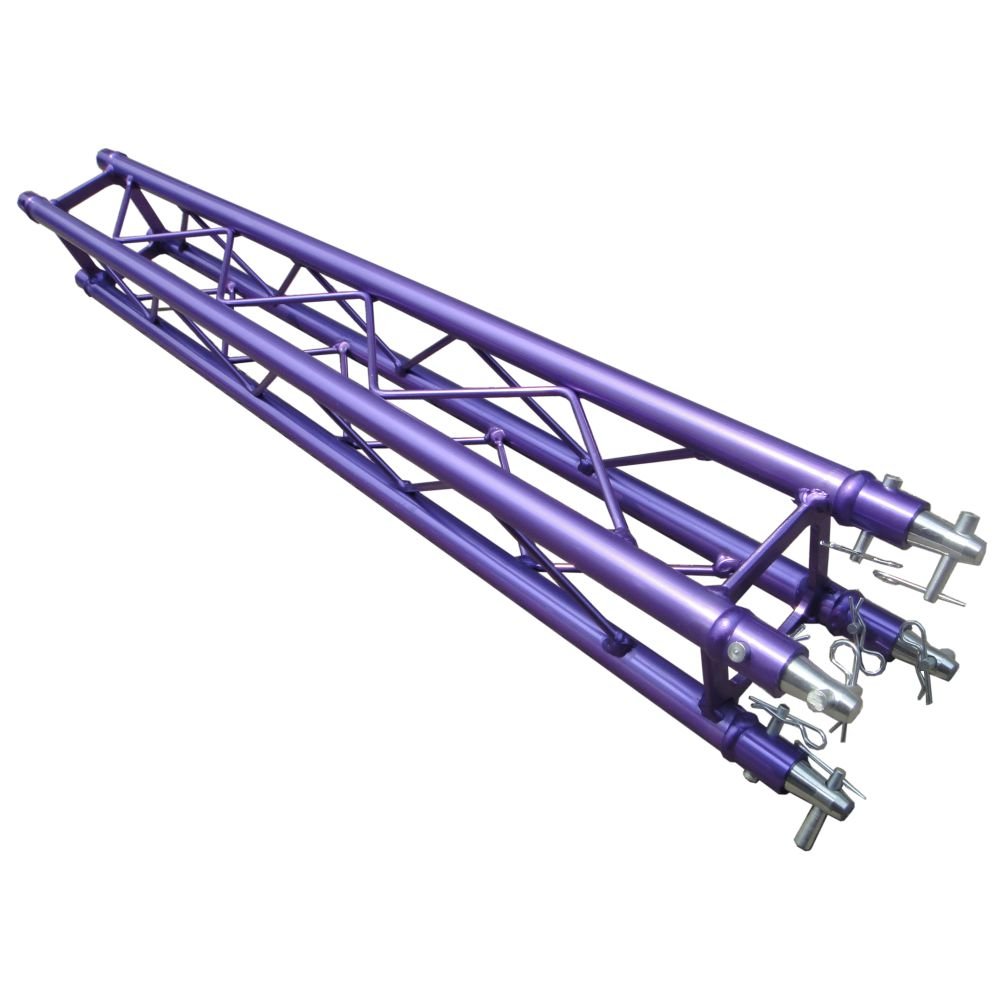

Specifications of the Square 100 Truss B10-Q Series

The Square 100 Truss B10-Q Series is engineered to meet a variety of structural and aesthetic needs, becoming a preferred choice among professionals in the industry. This truss series offers standard lengths ranging from 0.5 meters to 4 meters, providing flexibility for diverse applications while maintaining a robust structural profile. The dimensions of the truss are designed to accommodate various load capacities and spatial configurations, ensuring optimal performance in different scenarios.

Manufactured from EN AW 6082-T6 aluminum, the B10-Q series exhibits exceptional strength and durability. This material choice not only enhances the truss’s load-bearing capabilities but also contributes to its overall lightweight nature, facilitating ease of transportation and assembly. The material’s resistance to corrosion further ensures longevity, making it suitable for both indoor and outdoor use.

In terms of main tube specifications, the truss features a standardized diameter of 100 mm, with a wall thickness of 3 mm. This combination maximizes structural integrity while minimizing material use, aligning with modern engineering principles. The strategic placement of braces within the truss system significantly enhances stability, allowing it to withstand various forces during operation and ensuring a safe environment for any setup.

The coupling system, known as CCS20, is instrumental in the assembly process of the truss. It incorporates conical connectors and pins, which facilitate secure connections and ensure the truss maintains its structural integrity under load. These connectors enhance the ease of installation while contributing to the overall functionality of the truss system, allowing for quick adjustments when necessary. The combination of these specifications makes the Square 100 Truss B10-Q Series an optimal choice for various applications, from exhibitions to stages, ensuring reliable and efficient performance.

Applications of the Square 100 Truss B10-Q Series

The Square 100 Truss B10-Q series is a versatile architectural solution that finds a variety of applications across different industries. One of the primary uses of this truss system is in event management, where it serves as the backbone for constructing robust frameworks. Event planners leverage the B10-Q truss to create intricate designs that support equipment such as lighting and sound systems. Given its strength and ease of assembly, this truss can efficiently accommodate the rigors of live performances, festivals, and exhibitions. For example, many trade shows have effectively utilized the B10-Q truss to construct impressive backdrops and stage setups that enhance the overall aesthetics of the event.

In the construction industry, the adaptability of the Square 100 Truss B10-Q series contributes significantly to its popularity. It can be easily implemented in temporary installations, making it particularly useful for outdoor festivals, construction sites, or any scenario where a robust yet lightweight structure is required. Many architectural firms have employed the B10-Q truss in their projects to create functional and visually appealing designs that require the support of heavy loads while maintaining an elegant appearance. These trusses can also be implemented as scaffolding systems, providing structural integrity without compromising safety.

Real-world case studies further illustrate the capabilities of the Square 100 Truss B10-Q series. For instance, in a major concert event, the truss was used not only to support overhead lights and sound systems but also to create a captivating visual display that enhanced audience engagement. Similarly, in temporary installations for art exhibitions, the B10-Q truss’s lightweight design allowed for easy transport and assembly while ensuring stability for art pieces. Overall, the B10-Q series offers numerous applications that showcase its reliability and effectiveness in various settings.
